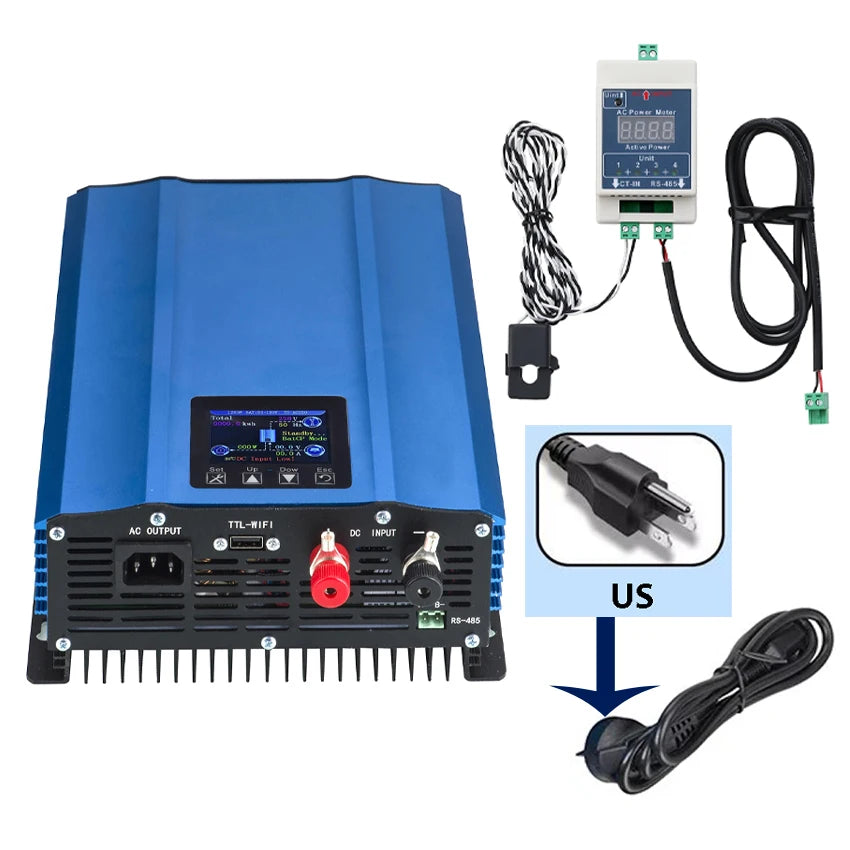

Shipping from US: With US Cable
Product Description:
The GTN grid-tied inverter uses innovative grid-connected inverter technology, which has the same ability to serial and parallel connect multiple components in series with a centralized inverter, while also having a distributed micro-inverter Small size and high efficiency, built-in innovative speed-enhanced maximum power point tracking (MPPT) control algorithm, integrated LCD function display and LED status display. The whole machine uses a number of patented designs, with high circuit integration, reliable performance, comprehensive optimization of the heat dissipation system, compatibility with various types ofphotovoltaic panel components, easy to operate and install.

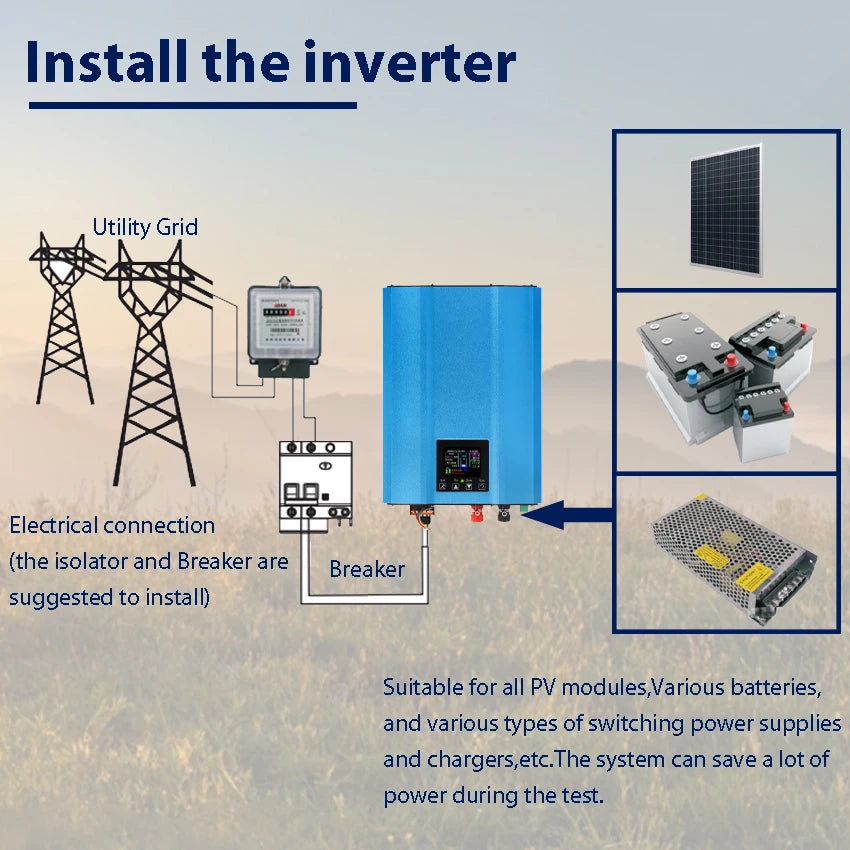

The grid-connected inverter can be applied to (such as various types of photovoltaic modules, various types of batteries, DC switching power supplies, DC motors, etc.) in the grid feed system or power supply type of load discharge, aging test and other systems. In the photovoltaic gridconnected inverter, the solar panel assembly can maximize the power output (built-in precision
MPPT), convert the output energy of the solar panel assembly to the grid, or use other switching power supplies and battery discharge tests.
Features of grid tie inverter:
With imported high-speed main control chip and powerdevice to improve system stability.
Advanced Maximum powerpoint tracking(MPPT)to ensure the high efficiency of system.
Efficiencyof MPPT>99%.

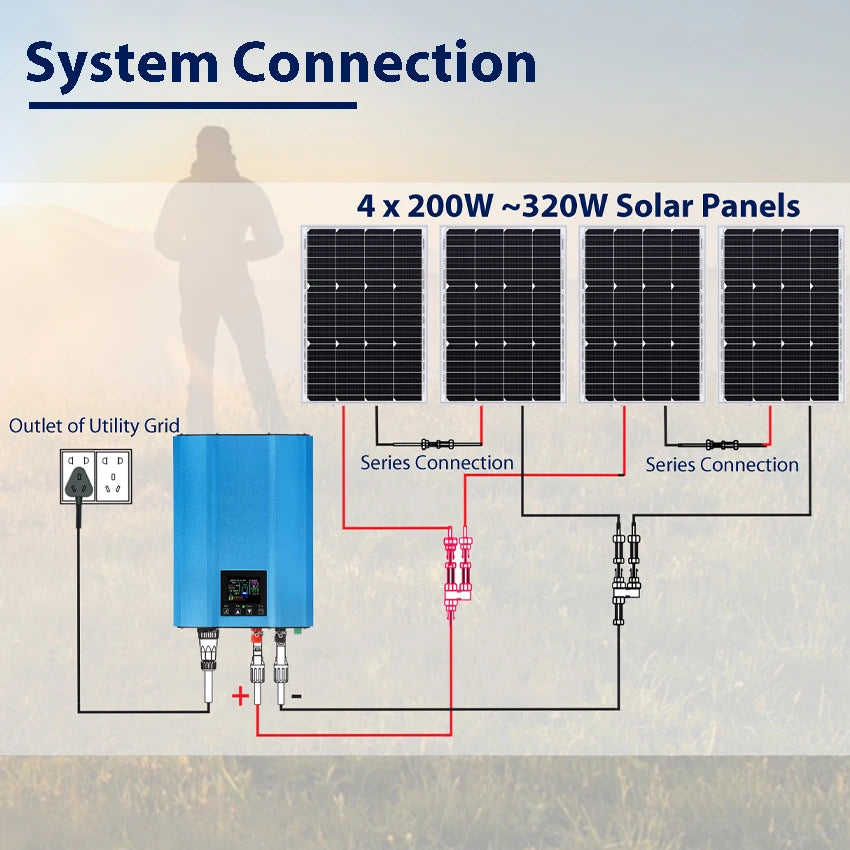

solarmodules can be serial/parallel input foreasy adjustment of system combination power.
High-efficiency and frequency transformer,sufficient patents.
Anti-islanding technology.
Multiple software, hardware system protection, advanced modular design,safe and reliable

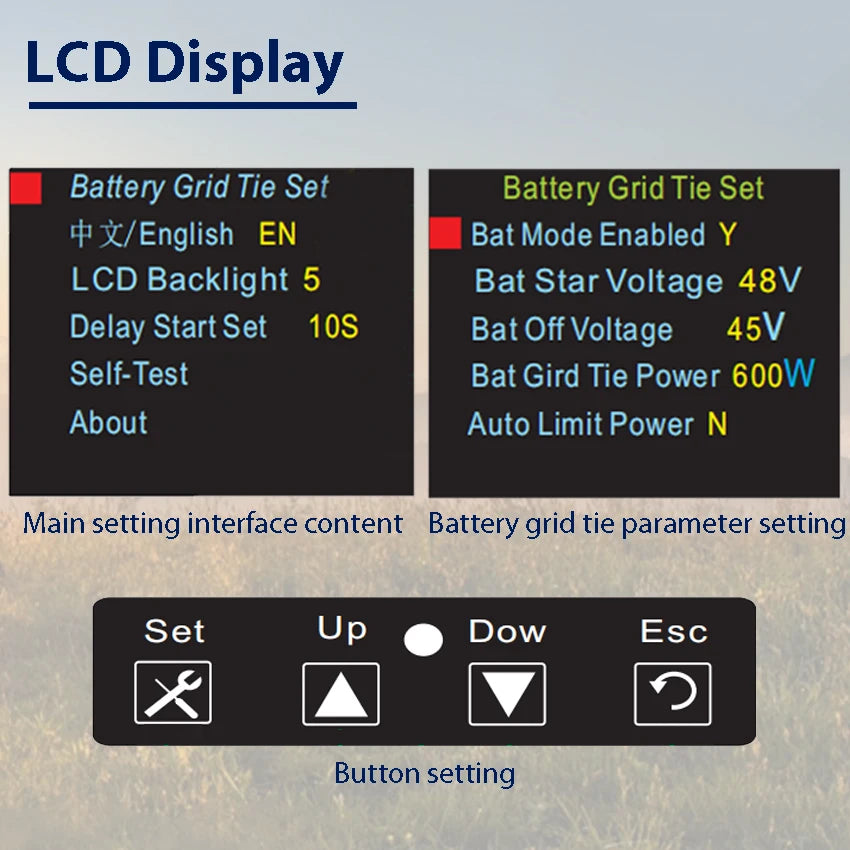

LCD rich content display function,userinterface,clear and intuitive.
Lightweight,easy to instal,operate and maintain.
Supports access to various DC sources fordischarge and can be used as energy-saving feedback electronic loads.
Support RS-485 communication function,data transmission and remote control to operate various functions of this inverter.
Product Parameters
1000W
Model |
GTN1000W |
Data Name |
DC Input Data |
PV module open circuit voltage range(V) |
24V~45V |
PV module power range (W) |
200W~1100W |
MPPT operating voltage range(V) |
21~31V |
Battery voltage suitable for connection(V) |
24V |
Battery startup voltage setting range(V) |
24~31V |
Battery low voltage shutdown setting range(V) |
21V~30V |
Maximum input protection current(A) |
40A |
AC Output Data (AC 120V or AC 230V, 48-62HZ) |
PV Mode AC Output Peak Power (W) |
1000W |
Battery mode output power setting range (W) |
60-650W |
Inverter conversion efficiency |
88% |
AC Voltage Range (V) |
90V~140V for AC 120 |
AC frequency Range (Hz) |
59.3~60.5 for 60Hz; or 47.5~51.5 for 50Hz |
MPPT Efficiency |
＞90% |
1200W
Model |
GTN1200W (BATTERY 48V) |
GTN1200W (BATTERY 96V) |
Data Name |
DC Input Data |
PV module open circuit voltage range(V) |
55V~90V |
120V~180V |
PV module power range (W) |
200W~1300W |
MPPT operating voltage range(V) |
44~70V |
90~135V |
Battery voltage suitable for connection(V) |
48V |
60V |
Battery startup voltage setting range(V) |
46~70V |
90~120V |
Battery low voltage shutdown setting range(V) |
44V~69V |
88~119V |
Maximum input protection current(A) |
30A |
20A |
AC Output Data (AC 120V or AC 230V, 48-62HZ) |
PV Mode AC Output Peak Power (W) |
1200W |
Battery mode output power setting range (W) |
60-800W |
Inverter conversion efficiency |
90% |
AC Voltage Range (V) |
90V~140V for AC120----US
or 180V~260V for AC 230----EU
(OPTIONAL)
|
AC frequency Range (Hz) |
59.3~60.5 for 60Hz; or 47.5~51.5 for 50Hz |
MPPT Efficiency |
＞99% |
