SPECIFICATIONS

Brand Name: ACMER

Certification: CE,ce

Chuck size: 64mm

Engraving Area: Other

Function 1: CNC Rotary Axis

Function 2: Cnc Router

Function 3: Wood Cutting

Hign-concerned Chemical: None

Is Smart Device: no

Laser Power: Other

Model Number: M4

Origin: Mainland China

Product Name: M4 4-in-1 Laser Rotary

Roller maximum spacing: 78mm

Roller recommended engraving: length ≤370mm

Size: 250*175*125mm (including chuck module)

Width adjustment: 4 levels

weight: 1.6kg

ACMER M4 Laser Rotary Module 4th Axis Rotary For Rotary Axis Clamp Diameter 4-64mm Accessories Curved Surface 3-Jaw for Glass Cans Cups

Specification

Size :  250*175*125mm (including chuck module)

Weight : 1.6kg

Roller maximum spacing : 78mm

Roller recommended engraving：Length ≤370mm (uniform density cylinder)

Chuck recommended clamping diameter range:

1.Stepped claw (1-100mm)

2.right-angle claw (1-134mm)

3.Spherical rod (inner diameter 9.5-95mm

4.ring(16-75mm sphere)

Chuck size : Ø64mm

Compatibility : Supports engraving on cylindrical objects such as glass bottles, stemmed glasses, thermos cups, and similar

items.

Width adjustment :  4 levels

Engraving diameter range : 3mm≤D≤150mm

🛠️ACMER M4

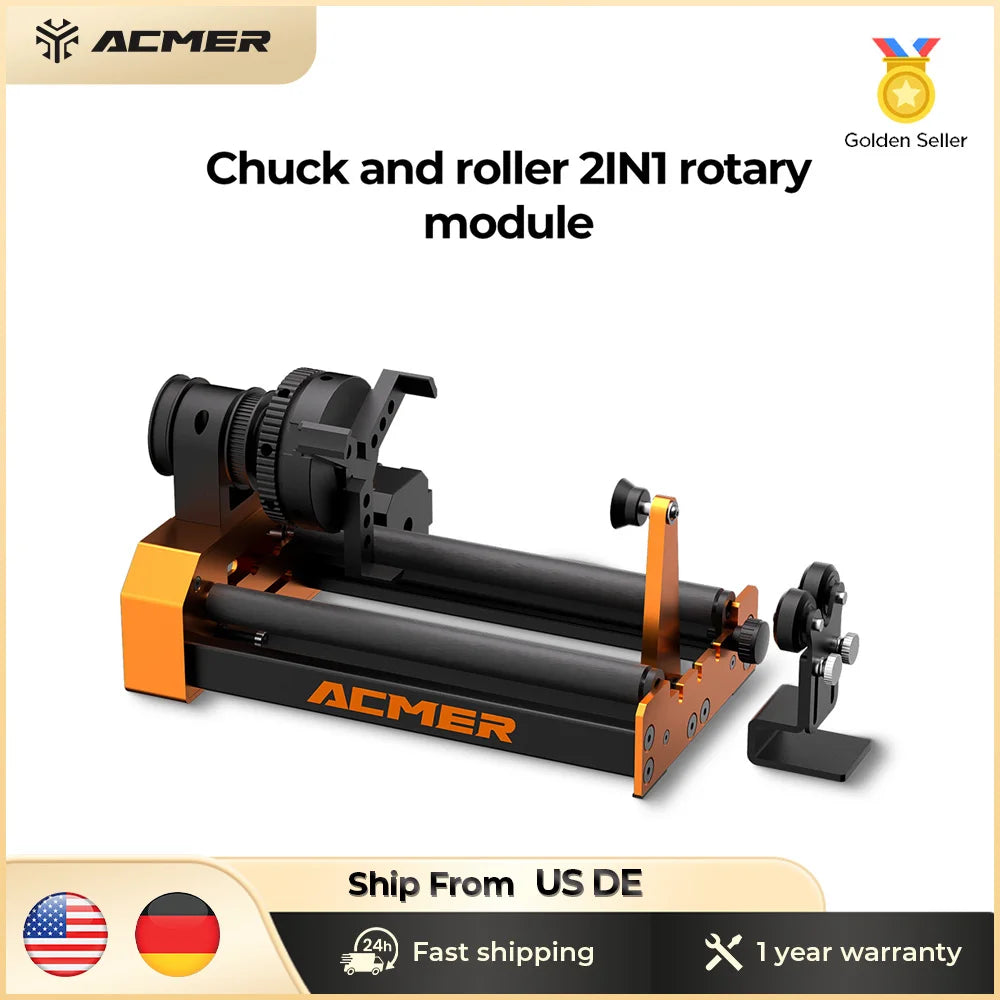

⚙️Chuck and roller 4lN1 rotary module for laser engraver



👍Best Laser Engraving Machine Companion——Rotary Roller





👊🏻Accurate and Efficient



⏺️360° Rotary engraving

📦Preassembled

📏4-138mm Engraving diameter

📐4 Levels Width adjustment



• High-friction silicone Rollers————Provide stable supportand enhanced grip

• Aluminum Body————Ensures efficient heatdissipation for extended use

• 360°Rotation————Allows full freedom for preciseand detailed engraving

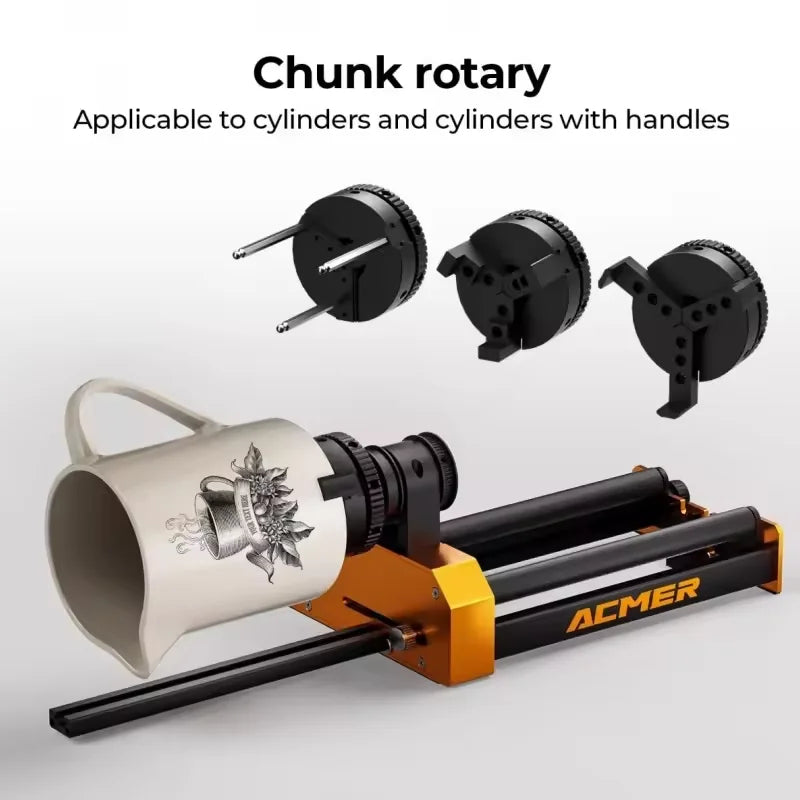

🎺Chunk rotary

• Applicable to cylinders and cylinders with handles

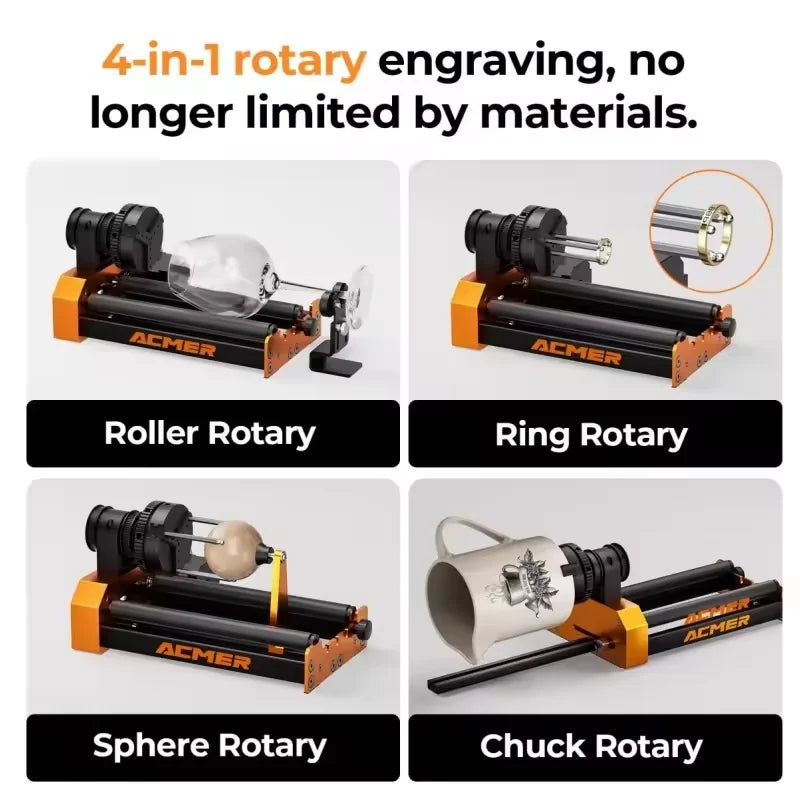

⚖️4-in-1 rotary engraving ————not limited by materials

• Roller Rotary

• Sphere Rotary

• Ring Rotary

• Chuck Rotary

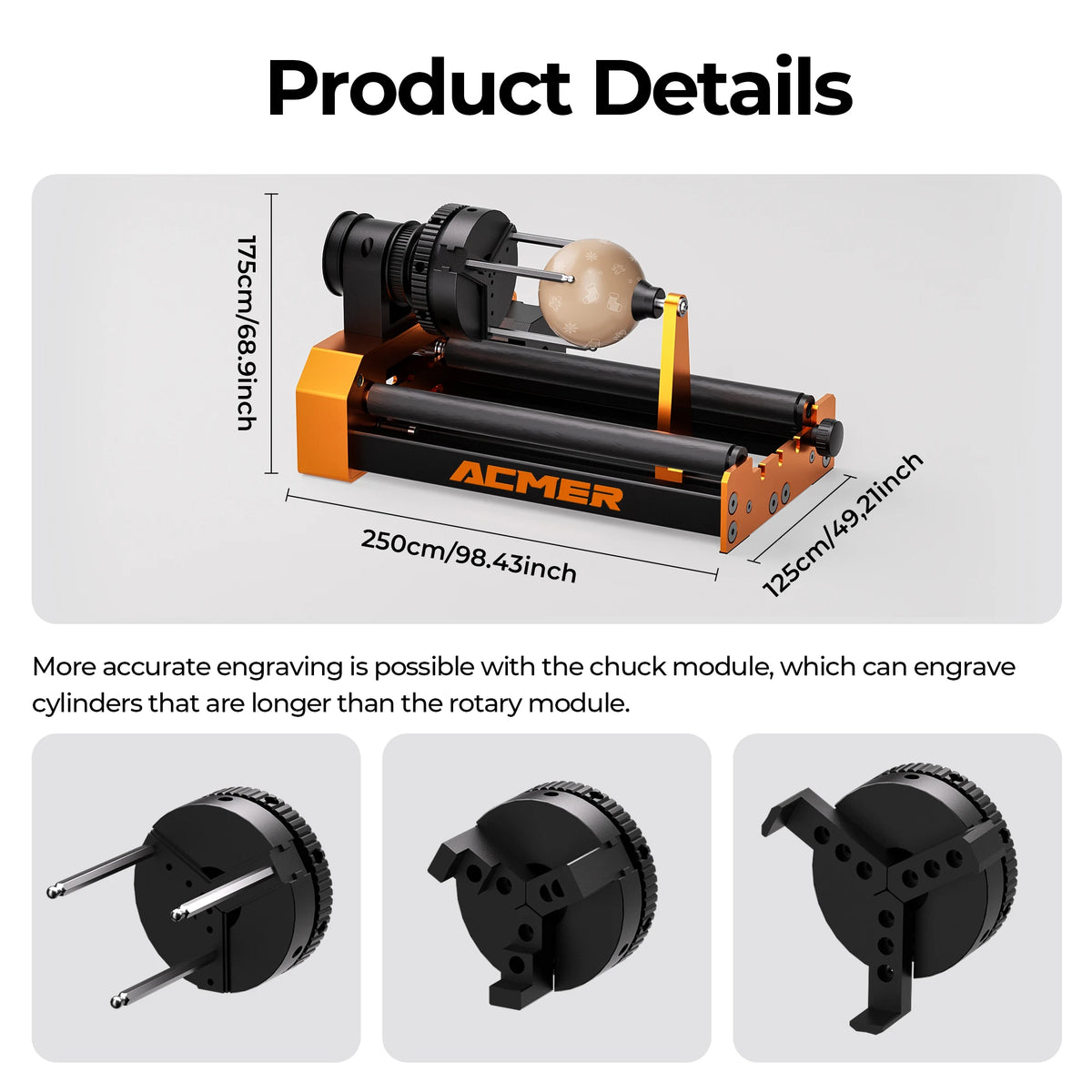

📍Chuck module———— Precise engraving, engraving longer cylinders than the rotary module

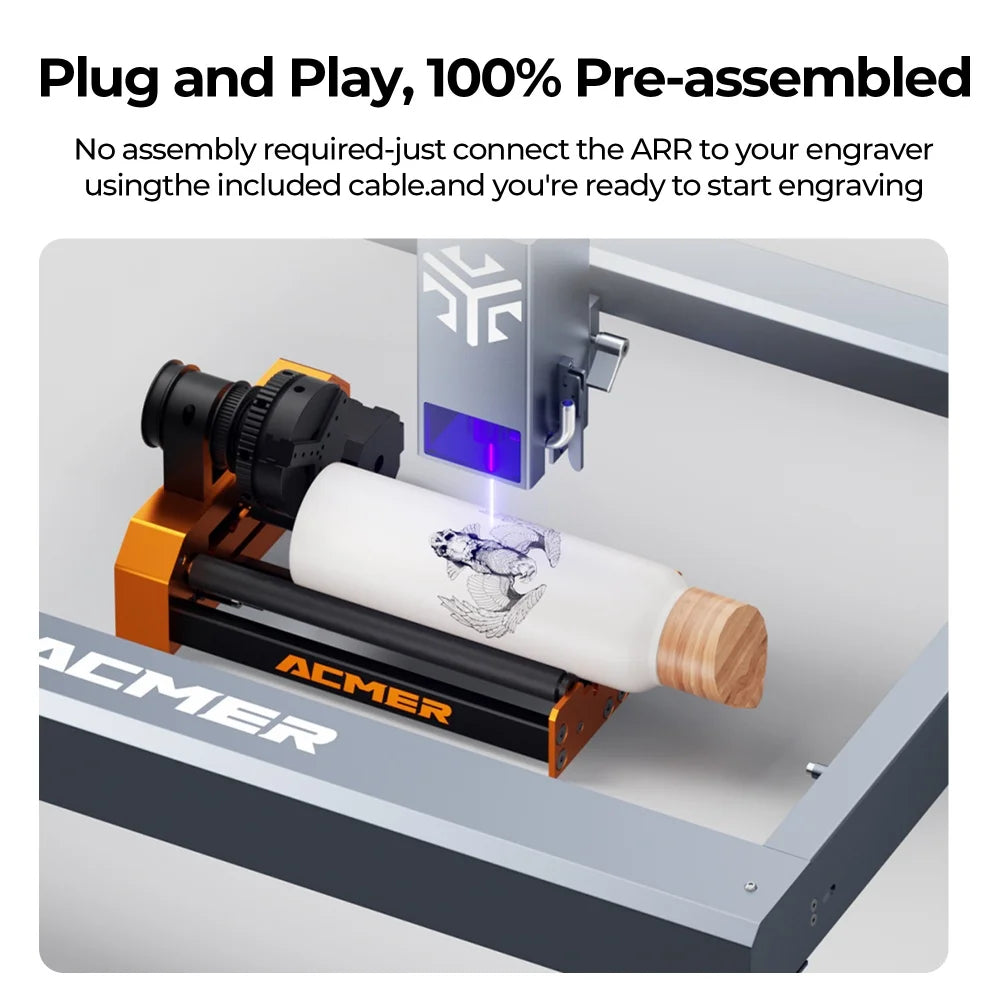

💯100% pre-assembled - plug and play

• No assembly required ————just connect the ARR to your engraver using the included cable

✅Maximum compatibility - works with 95% of laser engravers

• Works seamlessly and supports control via LightBurn, LaserGRBL, etc.
